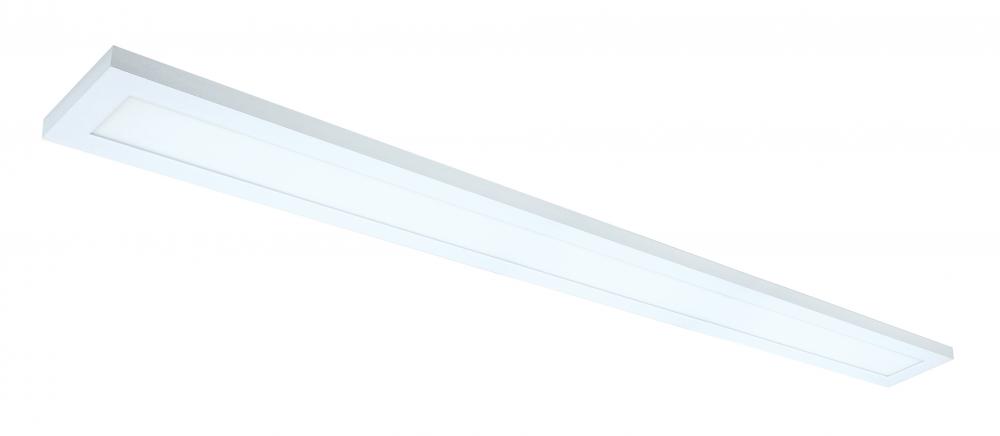

Blink Plus - 40W- 5.5'' x 48'' Surface Mount LED - 5000K - White Finish - 120-277V
Image may not reflect selected features
Blink Plus - 40W- 5.5'' x 48'' Surface Mount LED - 5000K - White Finish - 120-277V (A00J3) by Nuvo 62/1157
40W; 5.5 in.; x 48 in.; Surface Mount LED Fixture; 5000K; 80 CRI; Low Profile; White Finish; 120/277V
Product Specification
Item #
A00J3
Dimensions
Height: 0.75"
Width: 5.50"
Additional product details
Internal #
A00J3
Category
Flush Mounts
Subcategory
Other Flush Mounts
Finish
White
Style
Traditional
Option
LED , Prop 65
Category
Close-to-Ceiling
Sub Category
Edge Lit
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Natural Light
Dimmable
Yes-Dimmable
Each Height
8.27
Each Length
48.82
Each Width
2.48
Length
48
Lumens
3300L
Tariff Code
9405.11.8020
Warranty
5 Year Limited - Fixtures
Amps
0.333/0.144A
ANSI Base
Integrated
BAA Compliant
No
CA Prop-65
Lead
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Closet Rated
Yes
Connection
Direct Wired
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 10 percent
Dimmable Function
120V only
Dimming Type
Reverse Phase or Phase Selectable
Each Cube
0.5794
Each Quantity
1
Efficacy
82.50 LPW
FCC Compliant
Yes
Feature 1
Length: 48.00 inches, Width: 5.50 inches, Height: 0.75 inches
Feature 2
Dimmable
Feature 3
White Finish
Feature 4
5000K Natural White Light
Feature 5
3300 lumens
Feature 6
Damp location rated for indoor use
Feature 7
Easy installation
Feature 8
FCC and RoHS compliant
Feature 9
5 year limited warranty
Finish Family
White
Fixture shape
Linear
Incandescent Equivalent
175W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Long Description
Satco's 62-1157 40 watt, 48 inch by 5.5 inch LED surface mount fixture is a sleek lighting solution for commercial or residential applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this low profile, dimmable surface
Material
Aluminum
Mounting Procedure
Ceiling
NEC Compliance
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency
50/60Hz
Operating Temp
-17C (+1.4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.8
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Satco's 40 watt, 48 inch by 5.5 inch LED surface mount fixture is a sleek lighting solution for commercial or residential applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this low profile, dimmable surface mount i
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
40W/LED/5"X48"/FLUSH/5K/WH
Temperature (CCT)
5000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Wattage Selectable
No
Weight Lb.
5.23
Manufactured By
Nuvo
